AN-BI-0320HP

AN-BI-0320HP

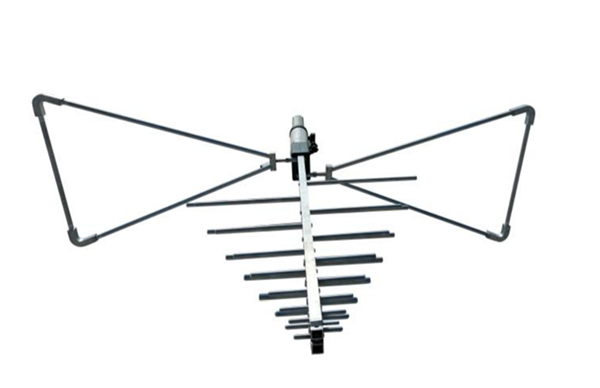

The AN-BI-0320HP is a broad-band linearly polarized antenna. The antenna is a combination of bi-conical and log-periodic elements and is engineered to cover the frequency range of the combination (20-2000 MHz). The antenna is suitable for use as an EMI test antenna, for immunity compliance measurements as per most regulatory requirements, covering a frequency range that would otherwise require three separate conventional antennae to cover the same frequency range. Typical applications of the antenna includes EMC radiated immunity, shielding effectiveness etc. The antenna is available with N Type female termination. The antenna can be mounted using a 22mm diameter stock, compatible with most EMC masts. Threaded mounting adaptors are also available optionally.



Features

1.  Bi-log Antenna for Radiated Immunity Testing & Tx applications
2.  Frequency Range : 20MHz – 2GHz
3.  Impedance - 50Ω (Nominal))
4.  One year standard warranty

Specifications

Model AN-BI-0320HP
Frequency Range 20 – 2000 MHz
Antenna Factor (dB/m) 4 – 35 (dB/m)
Max Continuous Power 1000 W
Polarisation Linear
Connector Type N Type Female
Dimensions (L x W x H) 1100 x 1520 x 510 mm
Weight ~4 Kg
Environmental -20°C to +40°C
Mounting 22mm diameter tube
Applications Radiated Immunity, SE
